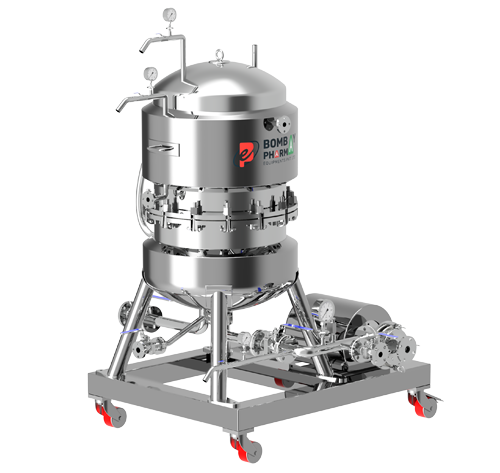

Sparkler Filter Press Manufacturer, Supplier, Exporter – Bombay Pharma

Bombay Pharma is a trusted name in the manufacturing and supply of high-performance Sparkler Filter Presses in India and worldwide. Engineered for precision batch filtration, our Sparkler Filter Press is an efficient, portable, and easy-to-operate solution for various liquid-solid separation processes.

It features a center-feed mechanism with a series of horizontal filter plates that ensure even distribution of slurry. This system is widely used in pharmaceutical, cosmetic, beverage, and chemical industries.

How To Use Sparkler Filter Press?

  • Preparation: Before using the filter press, make sure it is clean and free from any residue. Ensure that the filter media is of the correct size and shape, and that the pump and pipelines are in good condition.
  • Charging the Filter Press: The first step in using a Sparkler Filter Press is to charge it with the liquid that needs to be filtered. To do this, connect the inlet pipeline to the pump and charge the filter press with the liquid. The liquid will fill up the filter chambers, and the pump will pressurize the liquid.
  • Filtration: Once the filter press is charged, the filtration process can begin. The liquid will flow through the filter media, which will trap any impurities or solids in the liquid. The clean liquid will then flow out of the filter press through the outlet pipeline.
  • Discharging the Filter Press: Once the filtration process is complete, the filter press needs to be discharged. To do this, switch off the pump and open the outlet valve. The filtered liquid will flow out of the filter press and into a collection container.
  • Cleaning and Maintenance: After using the Sparkler Filter Press, it is essential to clean it thoroughly. This includes removing the filter media and cleaning it, as well as cleaning the filter press chambers, pipelines, and pump. Regular maintenance will ensure the filter press operates efficiently and prolong its lifespan.

Applications of Sparkler Filter Press:

  • Chemical Industry: Sparkler Filter Press is extensively used in the chemical industry for the filtration of chemicals such as acids, alkalis, solvents, and other corrosive liquids.
  • Pharmaceutical Industry: Sparkler Filter Press is used in the pharmaceutical industry for the filtration of liquid medicines, antibiotics, syrups, and other pharmaceutical products.
  • Food and Beverage Industry: Sparkler Filter Press is used for the filtration of beverages such as wine, beer, fruit juices, and edible oils, as well as for the removal of impurities from sugar syrups and other food products.
  • Oil Industry: Sparkler Filter Press is used in the oil industry for the filtration of crude oil, vegetable oil, and other oil-based products.
  • Paint Industry: Sparkler Filter Press is used in the paint industry for the filtration of paints, varnishes, and other paint products.
  • Water Treatment Plants: Sparkler Filter Press is used in water treatment plants for the filtration of water, wastewater, and other liquids.
  • Mining Industry: Sparkler Filter Press is used in the mining industry for the filtration of mining slurries, mine water, and other mining-related liquids.
  • Cosmetics : Fragrance, lotions, and skincare liquids
  • Soaps & Detergents : Liquid detergent and soap base filtration

Salient Features of Sparkler Filter Press :

  • Versatility: Sparkler Filter Press can be used for the filtration of a wide range of liquids, including corrosive and hazardous liquids.
  • Easy to Use: Sparkler Filter Press is easy to use and can be operated by a single person. The filter media can be easily replaced, and the filter press can be cleaned without any hassle, Movable units with castor wheels for easy handling, Quick assembly / disassembly, Multi-layered plate configuration for superior clarity and throughput.
  • High Filtration Efficiency: Sparkler Filter Press has a high filtration efficiency and can remove impurities up to a micron level, making it ideal for industries that require precise filtration.
  • Low Maintenance: Sparkler Filter Press requires minimal maintenance, making it a cost-effective solution for filtration needs.
  • Compact Design: Sparkler Filter Press has a compact design, making it easy to install and use in small spaces, saves space and offers high mobility.
  • Durable: Sparkler Filter Press is made of high-quality materials, making it durable and long-lasting, even in harsh operating conditions.
  • Automatic Operations: Sparkler Filter Press can be equipped with automatic control systems, making the filtration process more efficient and reducing the need for manual intervention.
  • Designed for leak-proof, high-capacity filtration
  • Available in SS 304, SS 316, and customized material options
  • Available in 8”, 14”, 18”, 24”, and 33” diameter sizes
  • Center Feed Mechanism – Ensures uniform flow across plates.
  • Drain Valve Option – Allows complete drainage post-filtration.
  • Pressure Resilient – Operates effectively under moderate pressure.
  Download PDF Get a Free Quote
Model Dai. of Plate No. of Plates Filtering Area (m ) Cake Holding Capacity Flow Rate
LTRS / HRS.
Size of Pump (Inches) Motor HP
BPE - 8 8" 6
8
10
0.217
0.279
0.341
4.49
5.77
7.06
600
800
1000
0.5"
0.5"
0.5"
1 HP
1 HP
1 HP
BPE - 14 14" 10
12
15
1.001
1.183
1.456
27.5
32.5
40
1875
2250
2800
1"
1"
1"
2 HP
2 HP
2 HP
BPE - 18 18" 15
18
24
2.4
2.85
3.75
64
76
100
6000
7200
9600
1.5"
1.5"
1.5"
3 HP
3 HP
3 HP
BPE - 24 24" 15
18
24
4.192
4.978
6.55
136
161.5
212.5
7000
8400
11200
2"
2"
2"
5 HP
5 HP
5 HP
BPE - 33 33" 14
18
22
7.83
9.918
12.006
221.25
280.25
339.25
13500
17350
21200
2.5"
2.5"
2.5"
7.5 HP
7.5 HP
7.5 HP

Advantages of Sparkler Filter Press :

  • Minimizes product wastage
  • Reduces process downtime with easy-to-clean design
  • Compact footprint ideal for space-constrained operations
  • High flow rate and pressure resistance
  • Long-lasting performance with minimal maintenance
  • Delivers crystal-clear filtrate.
  • Suitable for small to medium batch processes.
  • Accepts multiple filter media types.
  • Requires minimal operator attention.
  • Reliable, long-life performance with low maintenance.

Why Choose Bombay Pharma?

  • ISO 9001:2015 Certified Manufacturer
  • Exporting to 30+ countries worldwide
  • Precision engineered with robust quality control
  • Expert team for design and after-sales support
  • On-time delivery and secure packaging
