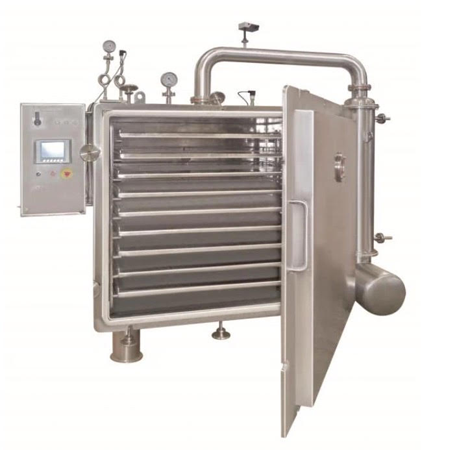

Vacuum Tray Dryer

Salient Features :

  • Suitable Size Condenser & Receiver iIn SS 316/304 to Condensate Collection.
  • Specially Designed Locking System is Provided Easy Tighting of the Door.
  • View Glass is Provided on the Receiver to see Condenser Level.
  • Vacuum and Temperature Gauges are Provided.
   Download PDF Get a Free Quote
Model Shelves Nos Tray Nos Tray on each self Water Heating System Oil Heating System Vacuum Pump
Heater KW Circ. Pump Heater KW Circ. Pump
VTD 06 6+1 Dummy 6 1 3 0.5 6 0.5 2 / 3
VTD 12 6+1 Dummy 12 2 6 0.75 9 1 3
VTD 24 12+1 Dummy 24 2 12 0.75 18 2 5
VTD 36 12+1 Dummy 36 3 15 1 24 2 5 / 7.5
VTD 48 16+1 Dummy 48 3 18 1 36 3 7.5
VTD 96 16+1 Dummy 96 6 30 1/2 48 3 12.5 / 15
