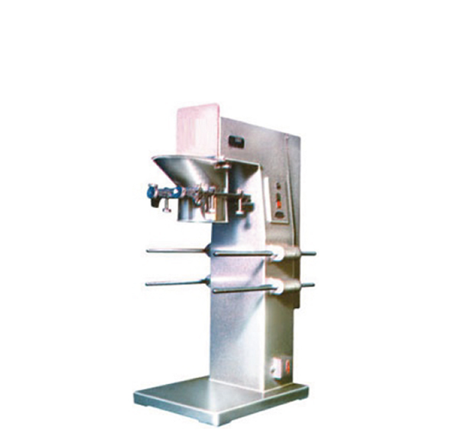

Oscillating Granulator

Salient Features :

  • Standard Model, Hopper Capacity 34 Ltrs. The Body of the Machine Is "L" Shaped Structure Screen Area 12.6" X 14.5".
  • Drum Size 5.4" Dia X 14.4" Length.
  • Output 30 To 200 Kgs/hr (App. for Damp. Materials).
  • 200 To 500 Kgs/hr (app For Dry Materials) Output Depends On The Characteristic Of Particle Product And The Reductions Required In Size.
  • Power Supply - 2hp, 1440 Rpm 440 Volts 3 Phase 50 Cycles A.C. Net Weight 250 Kgs. Approx.
  • Gross Weigh 400 Kgs Approx.
  • Overall Dimension - 32" x 18" x 49" (H).
  • Compact & Sturdy Unit.
  • CGMP Model With Documentation (IQ, DQ, PQ, OQ) - As Option.
